PVDF is a tough, stable fluoropolymer with distinct engineering advantages.
A semi-crystalline thermoplastic, PVDF is used in applications requiring the highest of purity and will withstand harsh chemicals, PVDF is one of the highest radiation resistance plastics available, only seconded by PEEK and Polyimide.It's highly desirable insolubility and electrical properties results from the polarity of alternating CH2 and CH2 groups on the polymer chain

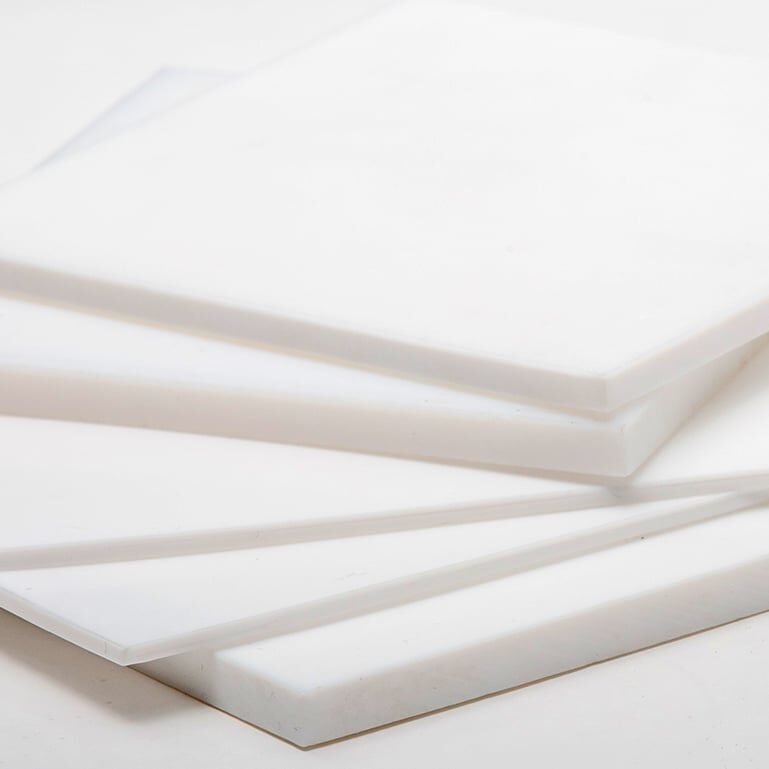

PVDF has a low density (1.78/cm3) compared to other fluoropolymers.PVDF is available in Rod, Tube and Sheet form and is processed by Injection moulding, compression moulding and hot moulding. Commonly used in the Semiconductor, defence, chemical and medical industries as well as in the production of lithium-ion batteries.
Key features:
Heat resistance
High abrasion resistance
Low permeability to most gases and liquids
Weather resistant
Low weight
Mechanical strength
Radiation resistance
Good electrical insulator
Resistance to chemical corrosion
Recyclable
|
Property
|
Value
|
Units
|
Method
|
|
Tensile Strength, 23°C, at break
|
5075-7250
|
psi
|
D 638
|
|
Tensile Strength, 23°C, at break
|
35-50
|
MPa
|
D 638
|
|
Elongation at break, 23°C
|
20-50
|
%
|
D 638
|
|
Flexural Strength, 23°C
|
2100
|
psi
|
D 790
|
|
Flexural Strength, 23°C
|
11165
|
MPa
|
D 790
|
|
Impact Strength, Izod, 23 °C, notched, 4mm thick
|
2.25
|
Ft-lbf/in
|
D 256
|
|
Impact Strength, Izod, 23 °C, notched, 4mm thick
|
120
|
J/m
|
D 256
|
|
Yield Strength at 23°C
|
7685-8265
|
psi
|
D 638
|
|
Yield Strength at 23°C
|
53-57
|
MPa
|
D 638
|
|
Density
|
1.78
|
gm/cu.cm
|
D 1894
|
|
Coefficient of friction, static
|
0.2-0.4
|
-
|
D 696
|
|
Coefficient of Linear Expansion
|
12-14 x 10⁻⁵
|
K⁻¹
|
D 3418
|
|
Melting Point
|
173
|
°C
|
D 3418
|
|
Thermal Conductivity
|
1.39
|
Btu/hr.-ft-deg F
|
ASTM C 177
|
|
Thermal Conductivity
|
0.2
|
watt/meter-K
|
ASTM C 177
|
|
Specific Heat, at 300 deg K
|
0.287-0.382
|
Btu/lb/deg F
|
-
|
|
Specific Heat, at 300 deg K
|
1.2-1.6
|
kJ/kg/deg K
|
-
|
|
Heat Distortion Temperature, 66 lb/sq.in (0.455 MPa)
|
145
|
°C
|
D 648
|
|
Service Temperature
|
to 150
|
°C
|
-
|
|
Processing Temperature
|
to 180
|
°C
|
-
|
|
Surface Arc-Resistance
|
-
|
sec
|
D 495
|
|
Volume Resistivity
|
>10¹⁴
|
ohm-cm
|
D 257/DIN 53483
|
|
Surface Resistivity, @ 100% RH
|
>10¹⁴
|
Ohm sq⁻¹
|
D 257/DIN 53483
|
|
1MHz, 23°C
|
7
|
ε
|
D150-81
|
|
Flame Rating+
|
V-0
|
Class
|
UL-94
|
|
Refractive Index
|
1.41-1.42
|
nD25
|
D 542
|
|
Limiting Oxygen Index
|
44
|
% Oxygen
|
D 2863
|
|
Water Absorption, 230 °C, 10Kg
|
< 0.04
|
gm/10 min
|
D 1238
|
|
Specific Gravity
|
1.78
|
-
|
ISO 1183
|
