No.
|
Item
|
Standard Values
|
Application
|
|
1
|
Max Pressure of Rotary pump
|
20 bar
|
• Industrial and chemical valves• Piston pumps, mixing agitator• Hot and cold water• Corrosive medium• Steam, oils• Salt water, etc
|
|
2
|
Max Pressure of Reciprocating pump
|
150 bar
|
|
|
3
|
Max Pressure of Static Sealing
|
150 bar
|
|
|
4
|
Max Rotary speed
|
15 m/s
|
|
|
5
|
Density
|
1.55 g/cm³
|
|
|
6
|
Temperature
|
-200 - 280°C
|
|
|
7
|
PH Value
|
0-14
|
Remark:

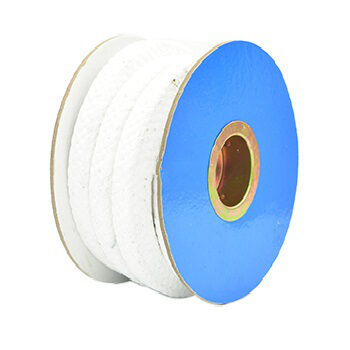

1.5KG/10KG per Coil.Supply Customized Size.
2.Standard Specifications:4mm*4mm; 6mm*6mm; 8mm*8mm; 12mm*12mm.
